生产线、材料、颜色代码先进的生产技术和特殊的配方可以生产出不同的档次产品，使得客户在任何特定应用领域里可以选择最合适的增强切片或磨片。	Production lines, material, color code Advanced manufacturing technology and special product formulas have permitted a high degree of product differentiation,enabling the user to select the most suitable reinforced cutting and grinding discs wheel for any specific application.

切片和磨片六种材料组成产品是基于其机械加工性能来进行分内的，产品商标代码系统对增强切片和磨片选择的最佳工艺进行简化。	Six material groups for reinforced cutting and grinding discs classification of material is based on their machining properties.The system of product label codes facilitates the choice of the optimum reinforced cutting and grinding discs.

Abrasive type code 磨料代码 A	Grit size 粒度 30	Hardness grade 硬度 Q	Bond 组合剂 BF
A=氧化硅 aluminum oxide C=碳化硅 silicon carbide Z=氧化锆磨料 zirconia alumina grain ZA=氧化锆/氧化铝磨料 zirconia alumina grain/Aluminum oxide AC=氧化铝/碳化硅 aluminum oxide/ silicon carbide WA=白刚玉 white corundum	16-24=粗粒度coarse 30-60=中等粒度m 70-220=中细粒度 fine-medium	硬度用字母（A-Z)从软到硬按升序排列 The hardness is graded from soft to hard by means of letters in alphabetically ascending order。 (A to Z) H-K=软 soft L-O=中等 medium P-S=硬 hard T-S=非常硬 very hard	BF=树脂结合剂 BF=Resinoid Bond 网片=增强，带无纺布或不带无纺布 Fibre=reinforced woven or ono-woven

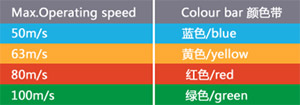

最大操作速度/Maximum operating speed
	根据EN12413的标准，最高的工作速度标示在产品商标和产品包装上，最大允许转速标准适用于标准直径的工具。 The maximum operating speede(m/s)is shown on the product label and product packs by a color bar in accordance with the specification of EN12413.the maximum permissible R.M.P.specification applies to the nominal diameter of the tools.

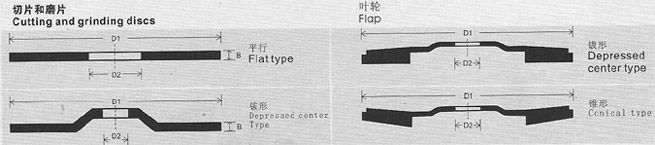

尺寸和形状/Dimensions and shape

直径、厚度、中心孔尺寸及表示的意义如图所示：
The diameter, thickness and center hole dimension are indicated in the drawings and tables by means of the following symbbols:


安全需求/Safety Recommendations

	带防护眼镜 Wear protective goeeles!		带防护手套 Wear protective gloves！
	带耳罩 Wear ear protectors!		带防尘口罩 Wear dust respirator!
	遵守安全要求 Observe safety recommendations!		禁止湿磨 Not approved for wet grinding!
	禁止徒手或手提操作 Not approved for free-hand and hand-held operation!		禁止侧面打磨 Not approved for side grinding!


安装系统/Mounting system
禁止使用具有两个不同直径的法兰片工具来切割或打磨，必须保证两个法兰片具有相同的外径和支持区域。 Never use flanges of different diameter Two flanges clamping a cutting and grinding tools must always have the same outside diametar and support area.
